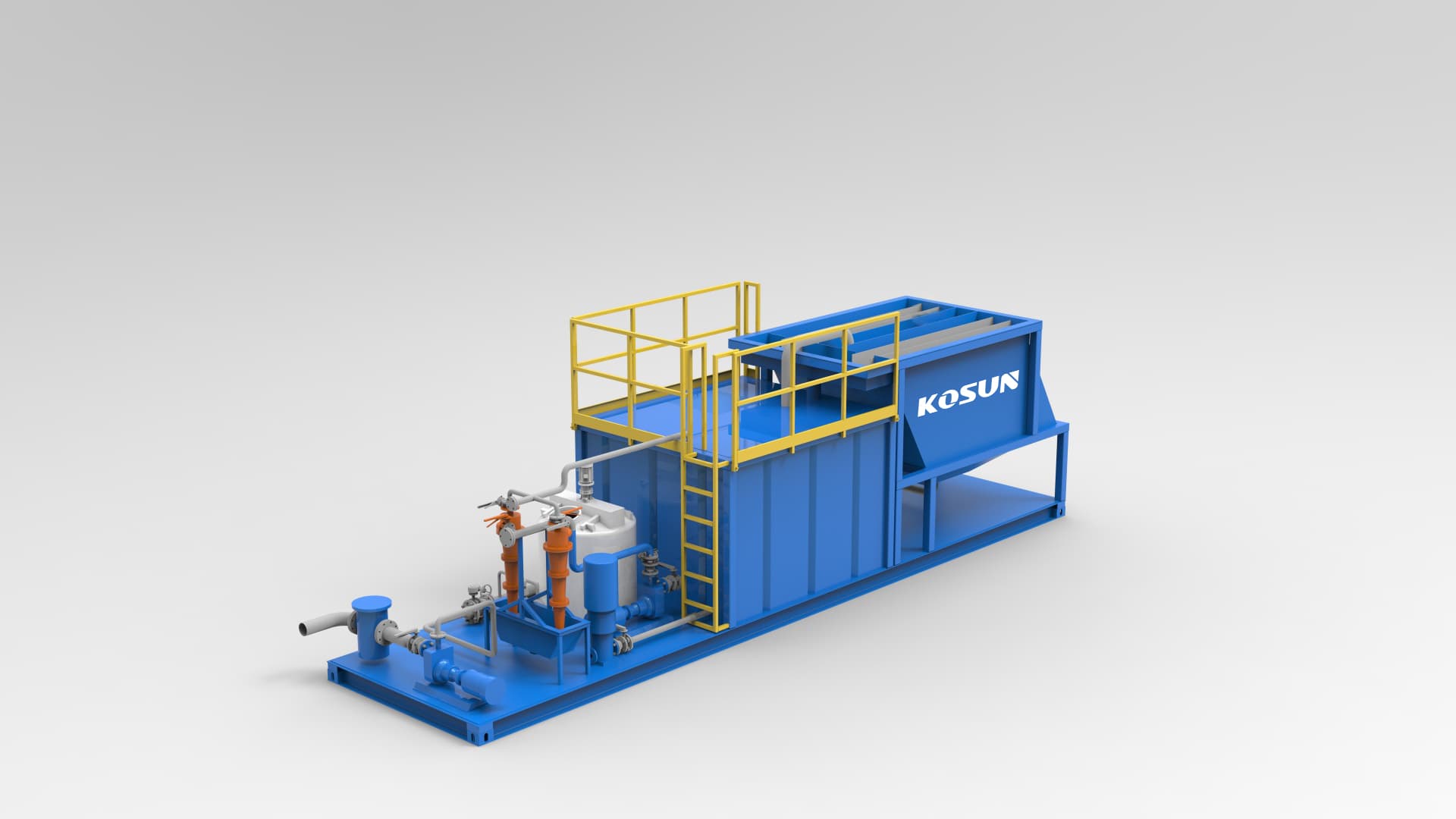

KQG30 Automatic Tank Cleaning

KQG30 ATC Automatic Tank Cleaning System Description KQG30 Automatic Tank Cleaning System is to automatically clean the tank bottom mud generated by solid control system, crude oil storage tank, etc. The working principle is to install the mechanical...


KQG30 ATC Automatic Tank Cleaning System Description

KQG30 Automatic Tank Cleaning System is to automatically clean the tank bottom mud generated by solid control system, crude oil storage tank, etc. The working principle is to install the mechanical high pressure cleaning machine on the upper part of the tank to be cleaned, inject a certain amount of water into the water tank of the KQG30 Automatic Tank Cleaning System, and start the high pressure pump system of the Automatic Tank Cleaning System will automatically clean. It is mainly carried out through filtration, inclined plate settling, cyclone separation and other processes, and the cleaning water can be recycled. The system is equipped with material self-priming pump, cyclone inlet pump, high pressure pump, diaphragm pump, etc., and the processing capacity is 30m³/h.

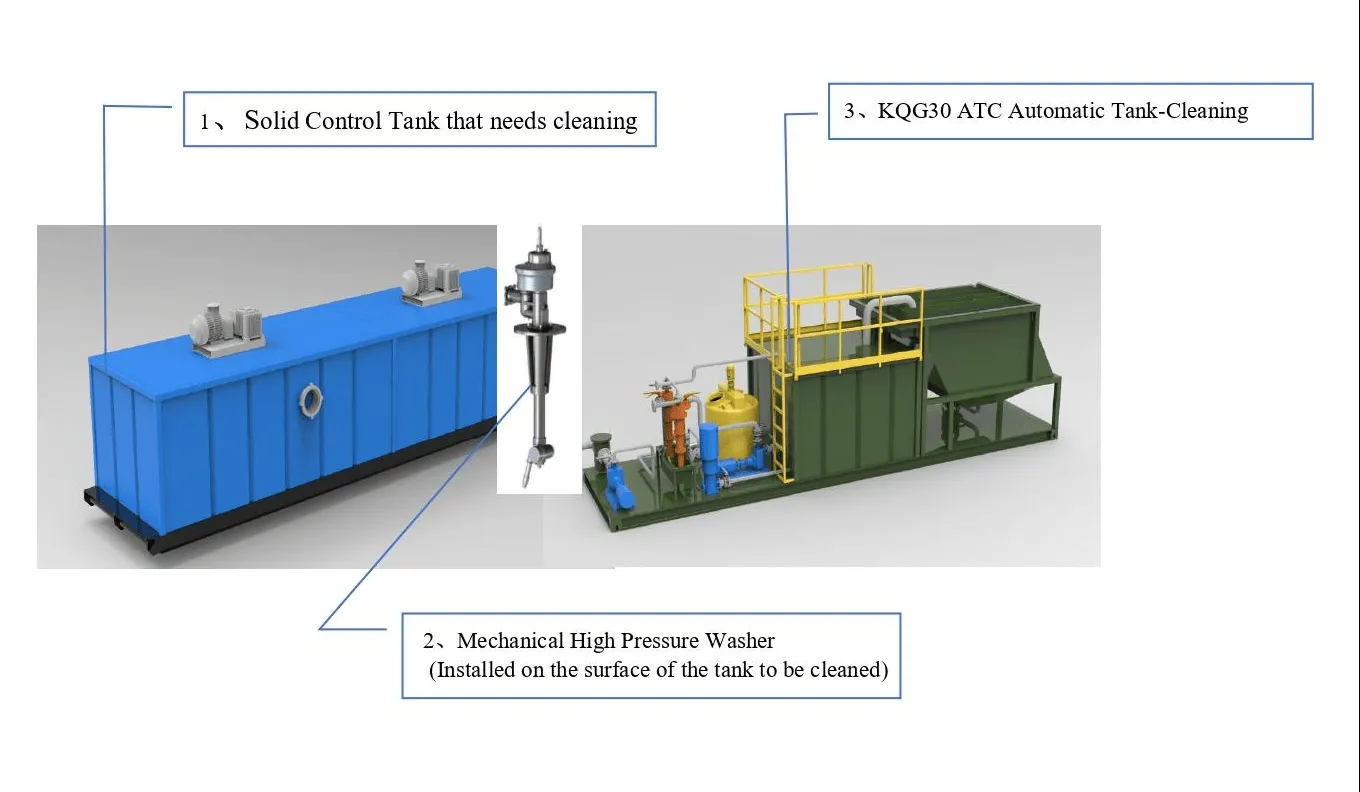

KQG30 Automatic Tank-Cleaning System use site layout
​

KQG30 Automatic Tank-Cleaning System technical parameters

Dimensions: 9150mm×2250mm×2550mm (40 feet high container can be transported);

Capacity: 30m³/h;

Total system power: 24kw;

Scope of use: mud tank, oil tank cleaning can be used;

Total weight of Automatic Tank-Cleaning System : 10000kg;

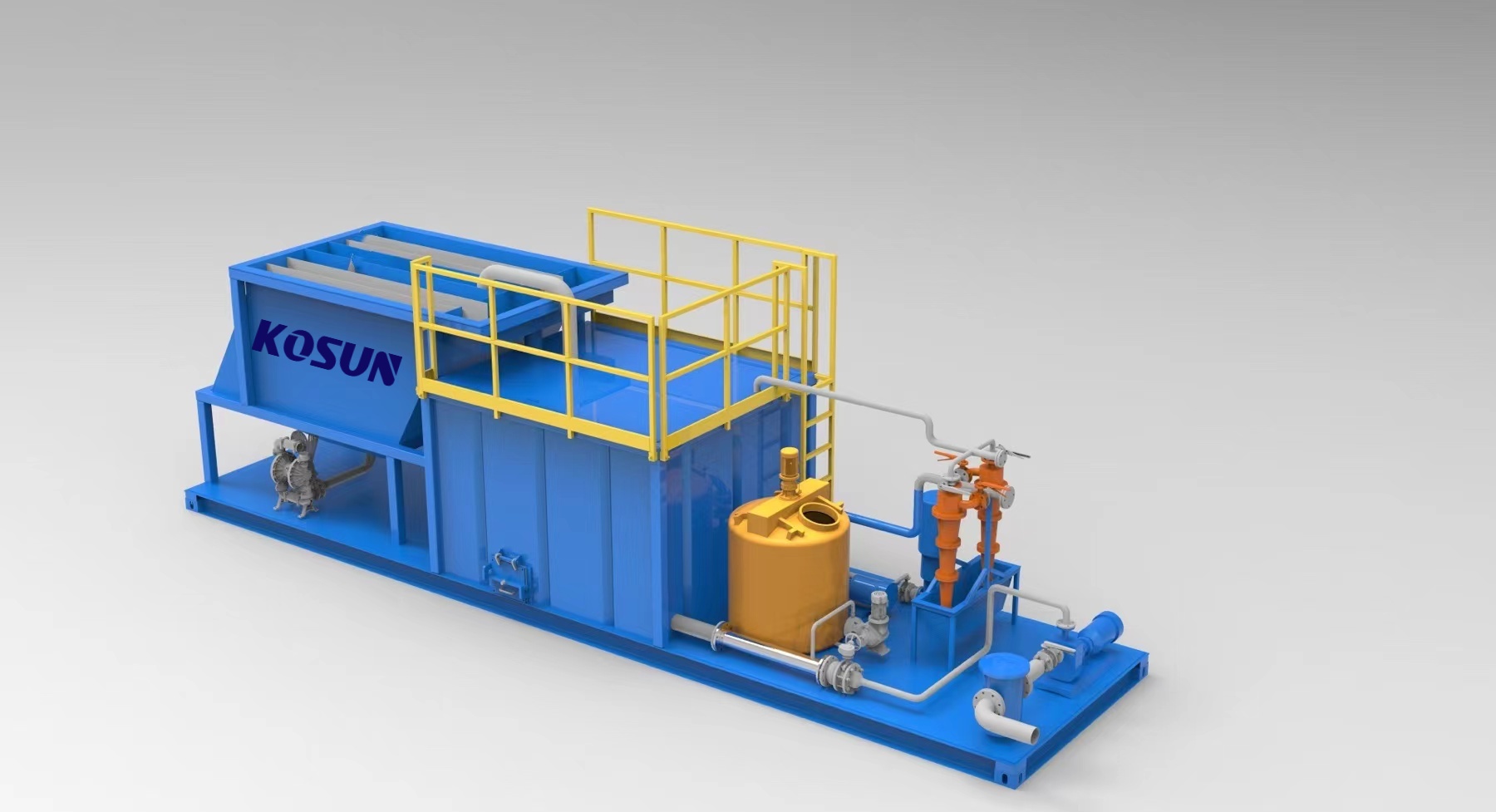

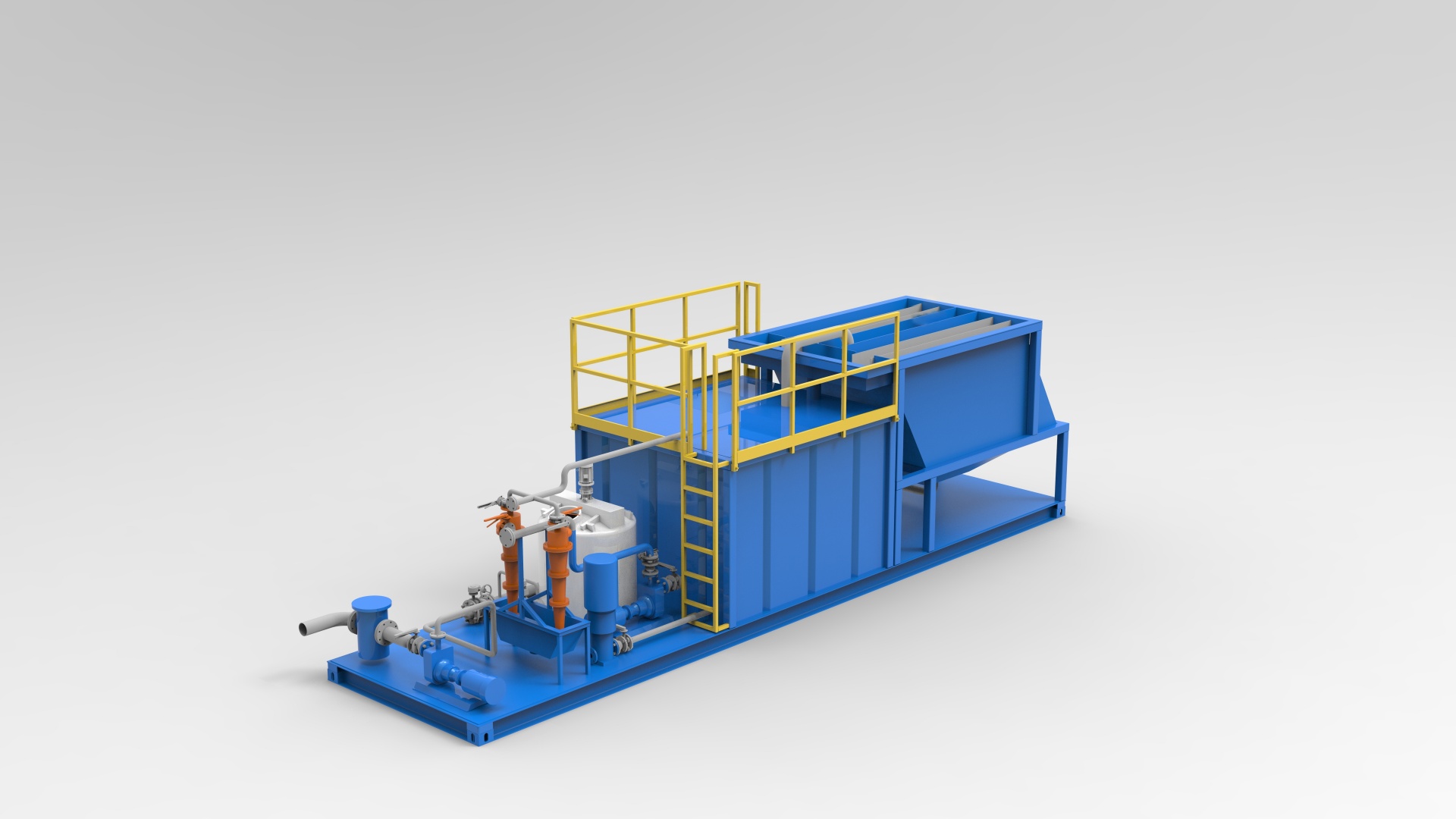

KQG30 Automatic Tank Cleaning Equipment

Separator

Skid water tank

Dosing device

Cyclone device

Material self-priming pump, cyclone inlet pump, high pressure pump, diaphragm pump

The system includes an electrical control cabinet, explosion-proof class Exd II BT

The advantages of KQG30 Automatic Tank-Cleaning System

●  the equipment can quickly extract and clean the waste oil, greatly shorten the operation time.

●  Automation equipment can replace manual entry into dangerous environments and reduce safety risks.

●  the recovered waste oil can be reused after treatment, reducing resource waste and reducing production costs.

●  cleaning water can be recycled, effectively reducing water consumption.

●  the operation is simple, can efficiently complete the cleaning task.

●  support the recycling of resources, in line with the concept of green production and sustainable development.
