Application:

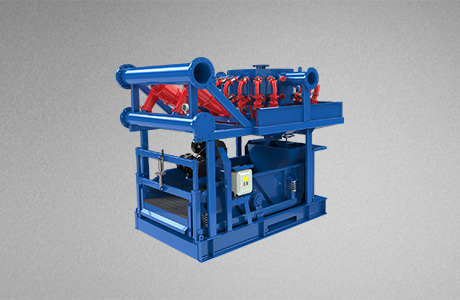

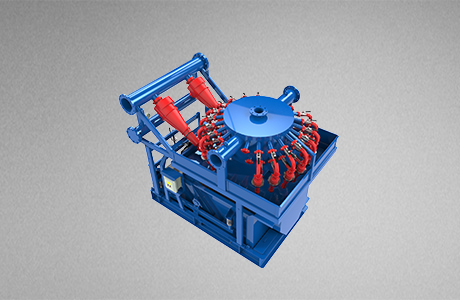

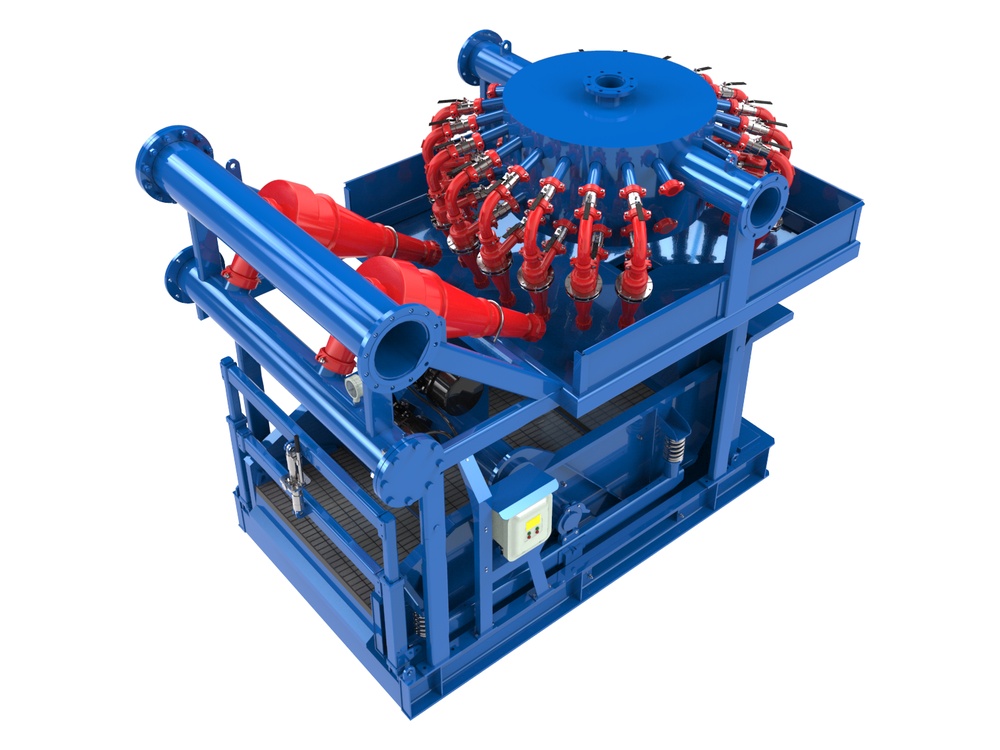

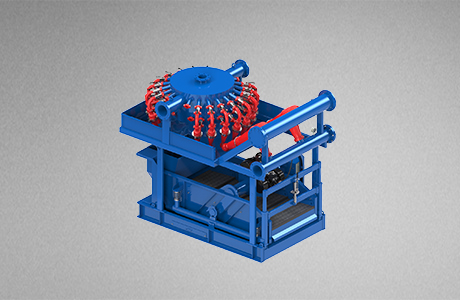

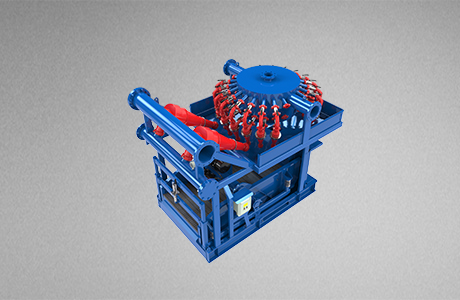

KOSUN MD Series Mud Cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.

Drilling Fluids Mud Cleaner Features & Benefits:

1. Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.

2. Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.

3. Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.

4. Mechanical Deck is adjustable during operation, reliable performance.

5. Compact design with small footprint, with top feed and weir feed two option.

6. Hook-strip shaker screen for fast screens changing with screens.
