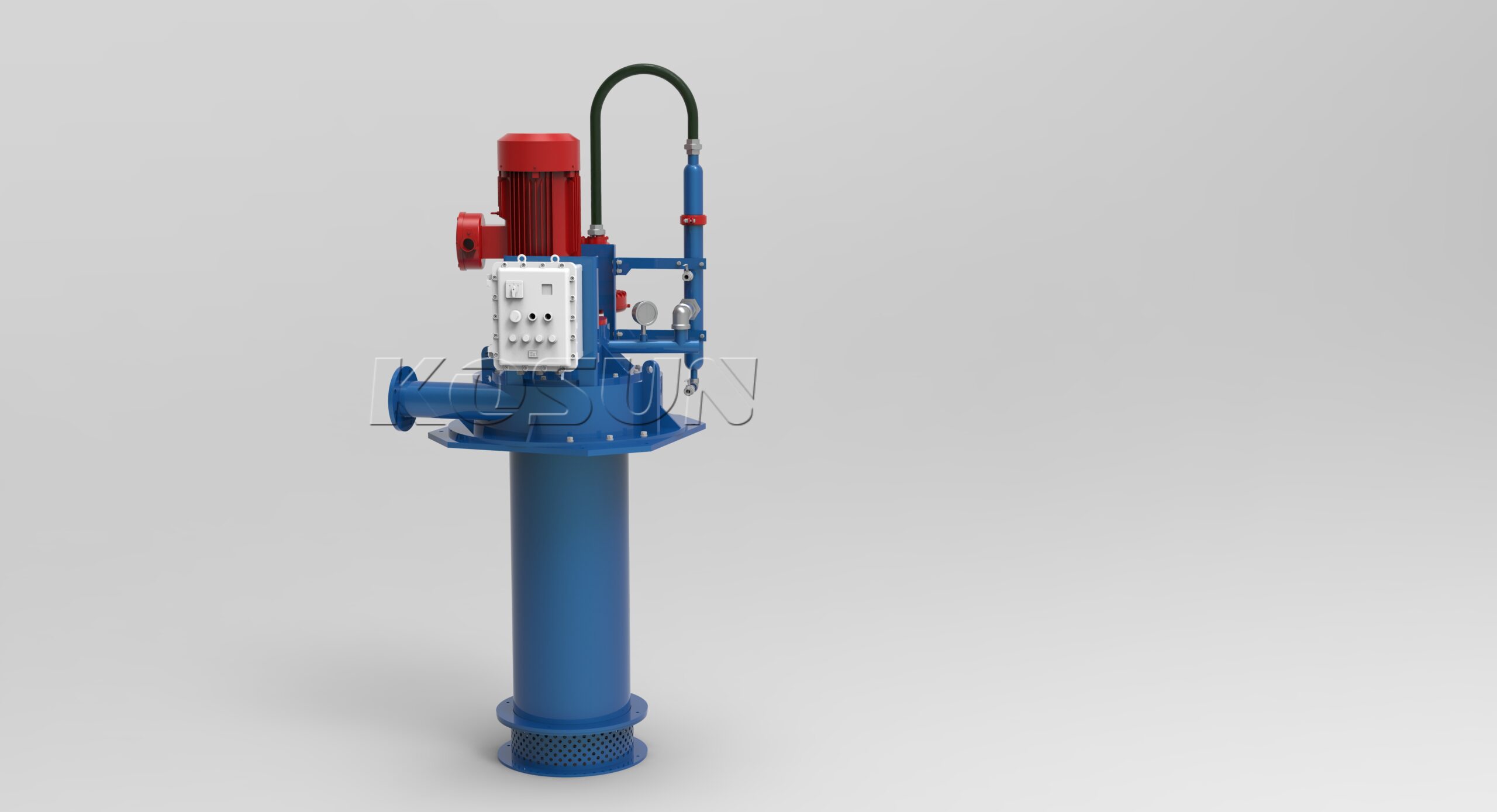

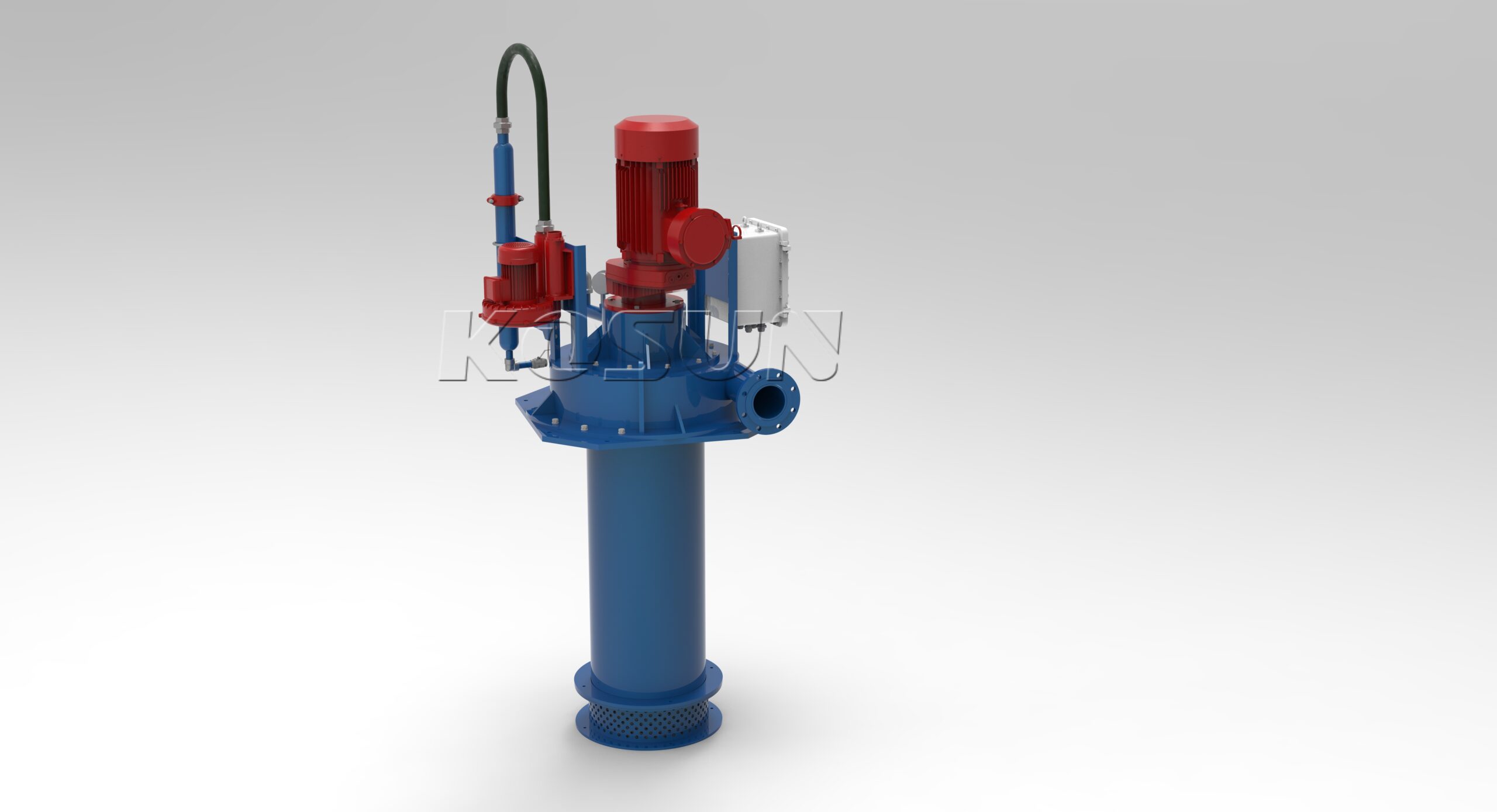

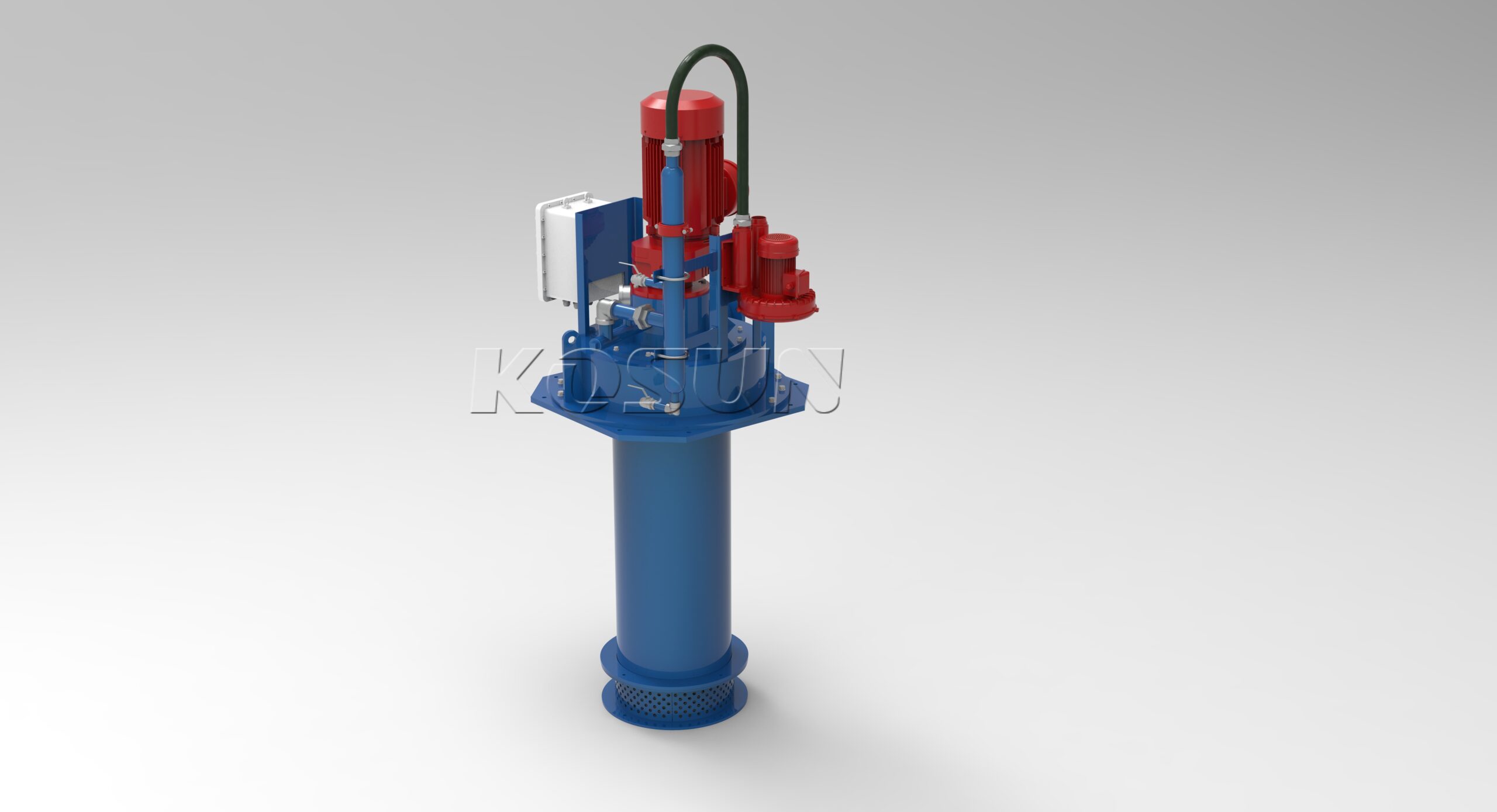

The KFCQ300 vertical degasser
The KFCQ300 vertical degasser technical parameters:
1. Overall size: 2800mm×1200mm×1420mm;
2, processing capacity: 300m³/h;
3, large gas removal: 30m³/h;
4, motor power: 22kw;
5, fan power: 1.5kw;
6, mud inlet size: DN500, mud outlet size: DN150;
7. Total weight of equipment: 1480kg;
2. Equipment configuration:
1, explosion-proof grade: Exd II BT4;
2, protection level: IP55;
3, the system includes electrical control cabinet;
Product principle:
1. The KFCQ300 vertical degasser exerts centrifugal force on the mud to multiply the force acting on the bubble, thereby increasing the buoyancy and releasing. The increase in buoyancy speeds up the bubble's rise. As the bubbles rise to the surface, they break free from the mud and are further broken up by turbulence. The fan will extract the separated gas from the equipment and discharge it to the atmosphere or the ignition device.
2, KFCQ300 vertical degasser is a new type of degassing equipment, used for the treatment of gas drilling fluid special equipment. It is usually installed behind the shaker. It is suitable for all kinds of mud purification system, which plays a very important role in restoring the specific gravity of mud, stabilizing the viscosity of mud and reducing the drilling cost. At the same time, it can also be used as a high-power agitator.
Product advantages:
1, easy to install, tank installation, almost eliminate the need for tank surface space.
2, the equipment is integrated, equipped with centrifugal cylinder unit, filter, motor and bracket, compact structure and space saving.
3, large capacity, low energy consumption, high efficiency;
