screw conveyors

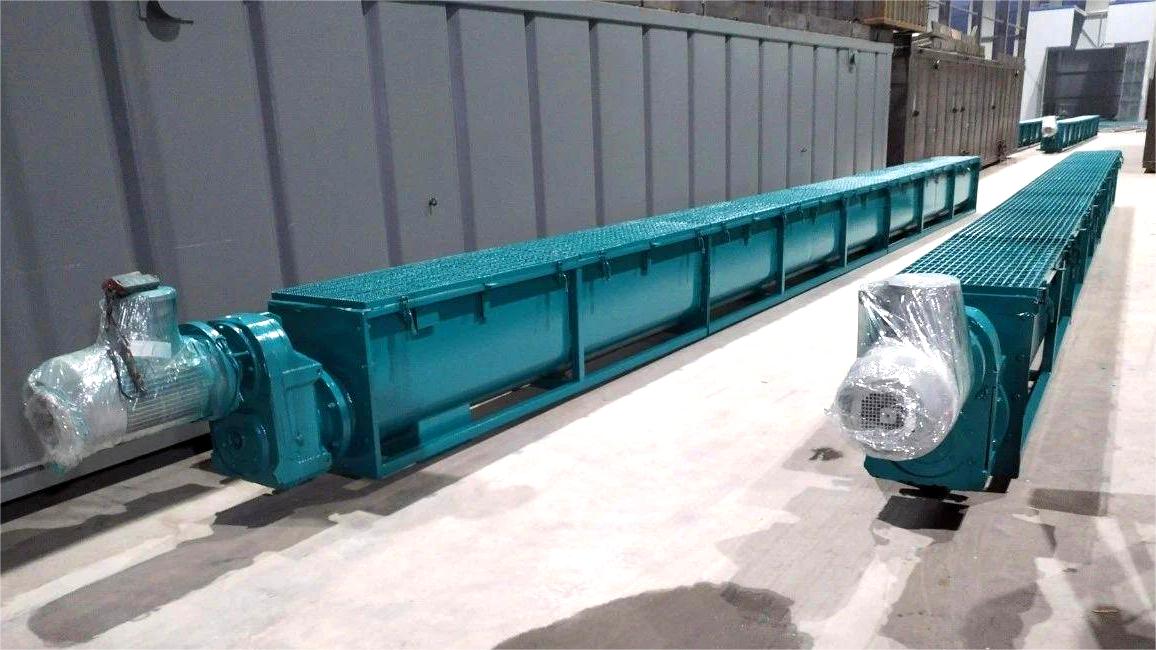

KOSUN series screw conveyor features

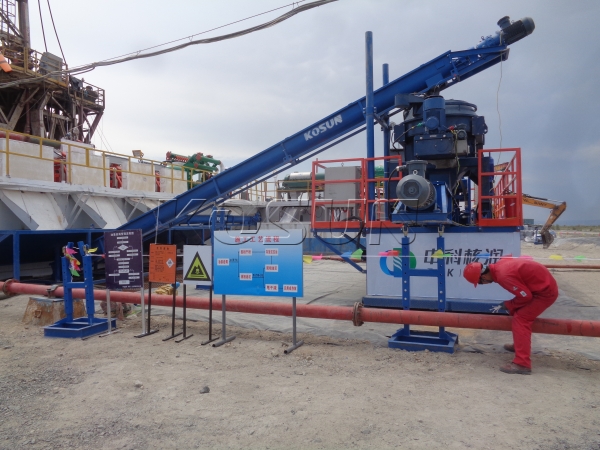

kosun solid control screw conveyor can be used to receive the drilling cuttings discharged by the solid control equipment of the drilling rig and transport them to the drilling mud equipment for treatment. The screw conveyor has a design length of 12 feet per section, which allows the screw conveyor to be replaced as a standard wearing part. The screw blade of kosun screw conveyor is made of wear-resistant material to ensure its service life.

General introduction of LS-type screw conveyor

发表评论 / Industry Update / Kosun_com

1.Characteristics and application range LS is the code for screw conveyors , where L represents the screw and S represents horizontal. LS screw conveyors are available in eleven different diameters: 100, 160, 200, 250, 315, 400, 500, 630, 800, 1000, and 1250mm. The maximum length of a single drive unit is 35m (LS1000 and LS1250 have a maximum length of 30m). They can transport materials with temperatures below 200C in a unidirectional manner with an inclination angle of less than 20, operating in temperatures ranging from -20C to 50C. 2.Advantages of LS screw conveyors include: (1) Simple structure and small cross-sectional dimensions, resulting in lower manufacturing costs. (2) Easy intermediate loading and unloading at various positions. (3) Convenient and safe operation. (4) The machine

General introduction of LS-type screw conveyor Read More »
